20mph Speed Roundel

Enhanced Road Safety Through Clear Speed Indication

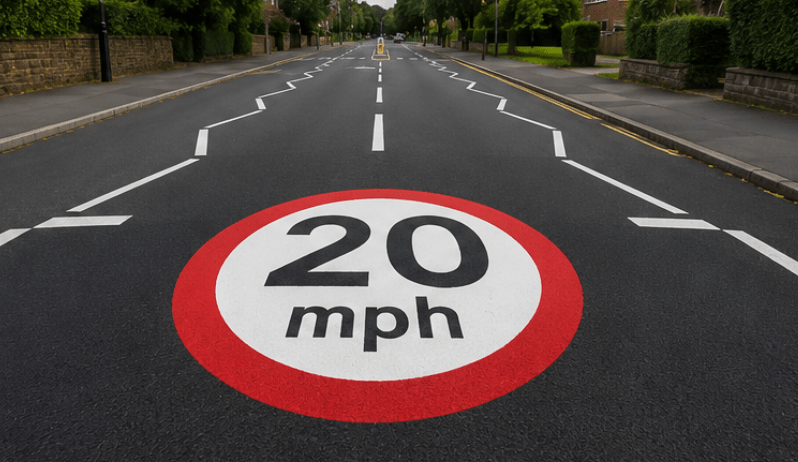

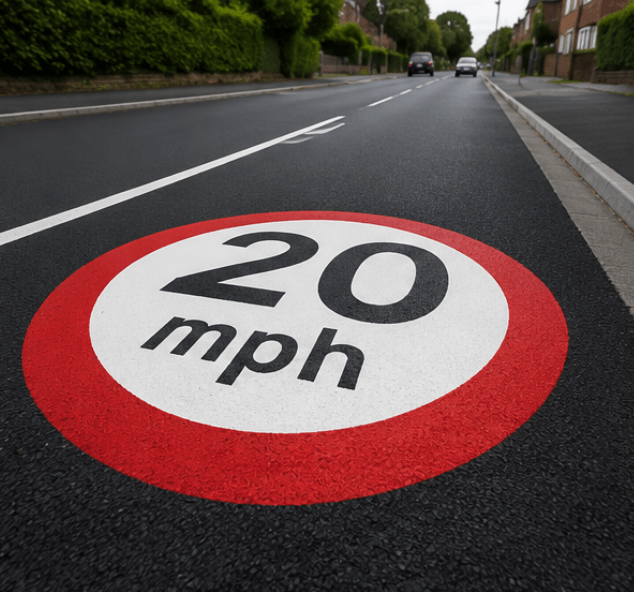

Our 20mph speed roundel is a high-visibility road surface marking designed to reinforce the 20mph speed limit at the point drivers need the message most: directly in their line of sight. It supports terminal and repeater signs, helps motorists recognise the new speed limit, and gives clear direction to all road users entering slower-speed streets, zones, estates, schools, and residential areas.

A 20mph speed roundel is marked on the road surface to reinforce terminal and repeater signs. Roundels are also used as a form of gateway at the entrance of a 20mph zone, signalling a change in the legal limit and helping drivers adjust their vehicle speeds before they reach people walking, cycling, parked vehicles, local businesses, or school entrances.

Lower speeds significantly increase a driver’s field of vision and reaction time, reducing the likelihood of severe or fatal injuries in the event of a collision. A car traveling at 20mph takes much less time to stop than one traveling at 30mph, making the marking a simple, visible way to support safer streets, clearer road signs, and stronger compliance with speed limit regulations.

Why You’ll Love Our Speed Roundels

• Instant Speed Recognition – Drivers immediately understand the maximum speed and can respond before entering residential streets, school approaches, private roads, or town centre zones.

• Weather Resistant Durability – Manufactured for UK road conditions, our thermoplastic road markings are built to resist rain, frost, UV exposure, traffic wear, and regular vehicle movement.

• Compliance with TSRGD 2016 – Designed to support correctly signed speed limits, speed limit signs, repeater signs, and other signs used by a local authority or council.

• Cost-Effective Safety Solution – A practical alternative or addition to expensive traffic calming measures such as speed humps, chicanes, and road narrowing schemes.

• Easy Installation Process – Fast professional application with minimal site disruption, enabling roads, stores, local businesses, schools, and communities to get back to normal quickly.

20mph limits are used where average vehicle speeds are already naturally low and rely on upright terminal and repeater signs along with optional road surface roundels. Research shows that on urban roads with low average traffic speeds, which is why clear speed messaging at regular intervals can make a measurable difference.

What Makes Our Roundels Different

Standard painted road markings can fade quickly, lose definition, and become harder to read in poor light or wet weather. Our 20mph tricolour speed roundel is built for clearer recognition, longer service life, and stronger performance in real road conditions.

Our 20mph Speed Roundel is built differently:

• Tricolour High-Visibility Design – The bold red, white, and contrasting speed marking helps drivers recognise the 20mph speed limit in daylight, at night, and in poor weather.

• Anti-Skid Surface Properties – The thermoplastic marking is designed to provide grip while maintaining a clear speed message for vehicles, pedestrians, cyclists, and other road users.

• Multiple Speed Options Available – We supply 5mph, 10mph, 20mph, 30mph, 40mph, 50mph, and 60mph speed roundel variations for private roads, residential areas, industrial sites, retail parks, highways, and controlled zones.

20mph zones, which include traffic calming features, particularly benefiting children and vulnerable road users. A roundel is not a replacement for every engineering measure, but it is an efficient way to create a visible gateway, reinforce a lower speed limit, and support road safety where traffic authorities, police, emergency services, and local communities all share responsibility for safer streets.

How It Works

1. Surface Preparation
   The road surface is cleaned, dried, and checked for loose material, oil, dirt, and poor adhesion points. Primer can be applied where required, depending on road conditions and the type of site.

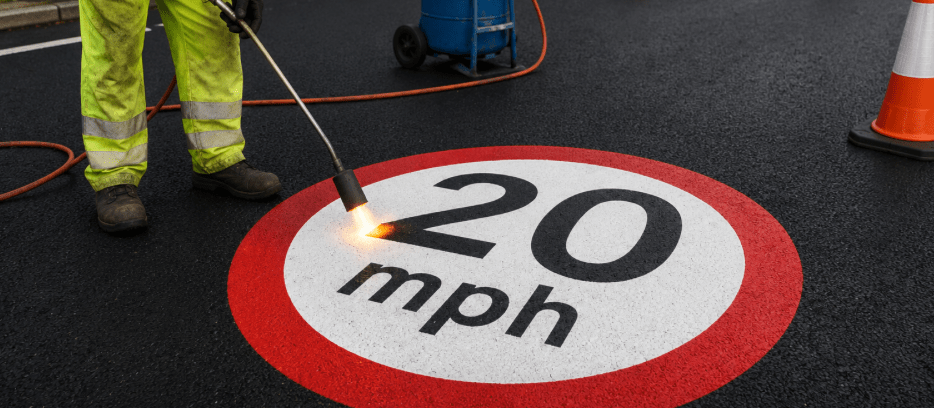

2. Roundel Application
   The speed roundel is installed using approved thermoplastic materials. The process creates a durable marking with clean edges, strong colour, and glass bead reflectivity to improve visibility for approaching drivers.

3. Immediate Speed Communication
   Once cooled and ready for traffic, the roundel provides instant visual speed limit indication. It works alongside upright speed limit signs, repeater signs, and other road signs to help reduce speeds and guide driving speeds through the new limit.

Traffic authorities should ensure that speed limits are signed correctly and consistently to ensure compliance and legal enforceability. Road surface roundels are especially effective when placed at a key gateway point, repeated at suitable regular intervals, and used with the correct signs in accordance with regulations.

Product Details

• Material / Format: Tricolour thermoplastic road marking compound with glass bead reflectivity and anti-skid surface properties.

• Dimensions / Specs: Standard 3m diameter roundel with bold 20mph speed numerals; alternative dimensions may be suitable depending on road width, site layout, and local authority requirements.

• Available Speeds: 5mph, 10mph, 20mph, 30mph, 40mph, 50mph, and 60mph options available.

• Compliance Standards: Designed to support TSRGD 2016 requirements and manufactured using thermoplastic material aligned with BS EN 1871 standards.

• Expected Lifespan: Typically 5-8 years depending on traffic volume, road conditions, braking force, turning movements, weather exposure, and maintenance.

• Suitable Locations: Residential streets, schools, private roads, retail parks, industrial estates, car parks, town centres, local authority schemes, and traffic calming zones.

• Installation: Professional application available with surface preparation, primer where needed, thermoplastic application, and final quality checks.

All speed limits, other than national limits or limits on special roads, should be made by speed limit order under Section 84 of the Road Traffic Regulation Act 1984, which includes the making of a 30mph speed limit on an unlit road. The minimum length of a speed limit should generally be not less than 600m to avoid too many changes of speed limit along the route, although this can be reduced in exceptional circumstances.

Who It’s For

Ideal for:

• Local councils implementing 20mph zones and speed limit changes

• Highway authorities managing traffic calming schemes

• Private road operators requiring clear speed guidance

• Schools and residential areas seeking enhanced pedestrian safety

• Retail parks, stores, industrial estates, and local businesses managing vehicle speeds on-site

• Communities in England, Wales, and across the UK looking to improve safety for pedestrians, cyclists, motorists, and emergency services

Traffic authorities have the flexibility to set local speed limits that reflect local needs and conditions, and they should only introduce 20mph limits and zones in appropriate places with local support. Traffic authorities set local speed limits in situations where local needs and conditions suggest a speed limit that is lower than the national speed limit.

The guidance for setting local speed limits is to be used for all single and dual carriageway roads in both urban and rural areas, ensuring that speed limits reflect local conditions and needs. 20mph limits should only be introduced with local support and in areas where there are significant numbers of journeys on foot or where cycling is an important consideration.

Frequently Asked Questions

Are these legally enforceable on their own?
No. A 20mph speed roundel reinforces the speed limit, but road markings alone are not usually legally enforceable. The legal limit must be supported by the correct speed limit order, upright terminal signs, repeater signs where required, and consistent signing. Police and enforcement teams rely on correctly placed signs and compliant regulations, not only the road surface marking.

How long do the roundels last?
Our thermoplastic speed roundels are designed for long-term performance, with an expected lifespan of 5-8 years depending on traffic volume. Heavy traffic, braking, turning vehicles, poor road conditions, and contamination can shorten lifespan, while lower-speed sites and well-prepared surfaces can extend durability.

Can they be applied in all weather conditions?
No. Thermoplastic road markings should be installed on a clean, dry, structurally sound surface. Heavy rain, frost, standing water, very cold temperatures, or unsuitable road conditions can affect adhesion and finish quality, so installation is scheduled to comply with safe application requirements.

Do you offer installation services?
Yes. Professional installation can include site assessment, surface preparation, primer application where required, thermoplastic roundel placement, glass bead reflectivity, and final quality checks. We can also provide detailed information for councils, contractors, private road managers, schools, and local authority transport teams.

Why choose a 20mph roundel instead of relying only on signs?
Drivers may miss upright signs, especially in busy streets with other signs, parked vehicles, pedestrians, and changing traffic conditions. A roundel places the speed message directly on the road, helping motorists understand the new limit, reduce speeds, and maintain safer driving speeds through the zone.

Where should a 20mph speed roundel be used?
Roundels are commonly used at the gateway to a 20mph speed limit, near schools, on residential streets, in private developments, around local communities, and at sites where clear road markings improve safety. The minimum length of a speed limit should generally be not less than 600m to avoid too many changes of speed limit along the route, although this can be reduced in exceptional circumstances.

Ready to Improve Road Safety?

Stop relying on faded markings or unclear speed messaging. Choose our 20mph tricolour speed roundel to create a clear, durable, compliant road marking that helps drivers recognise the speed limit, supports slower speeds, and contributes to fewer road traffic collisions.

All speed variations are available, including 5mph, 10mph, 20mph, 30mph, 40mph, 50mph, and 60mph.

Fast quotation. Professional installation. Clear markings for safer roads.
