60mph Speed Roundel Road Marking

Clear Visual Speed Limit Enforcement for Enhanced Road Safety

A 60mph speed roundel gives drivers clear, road-level confirmation of the current speed limit, helping reinforce compliance on single carriageway roads, rural roads, temporary schemes and speed transition zones.

installed directly onto the carriageway, this thermoplastic 60mph roundel provides an immediate visual reminder of the applicable speed limit., making the mph speed limit easier for drivers to recognise alongside upright traffic signs, repeater signs, speed cameras or average speed cameras. Local authorities utilize 60mph signs and road markings to target driver behavior, improve safety, manage traffic flow and reduce speeds where higher speeds could increase risk.

Why You’ll Love It

• Clear driver reminder – Helps warn drivers of the maximum speed limit at the start of a new speed limit or at regular intervals.

• Road-level visibility – Large painted numbers on asphalt can be more visible than ordinary speed limit signs, especially when drivers are focused on lanes and road layout.

• Built to withstand heavy traffic – Durable thermoplastic construction resists wear from motor vehicles, goods vehicles and heavy traffic.

• Supports safer roads – For every 1mph reduction in average speed, collision frequency decreases by around 5%.

• Useful for evidence-led schemes – Local speed limits should be evidence-led and self-explaining, reinforcing drivers’ assessment of safe speeds and encouraging self-compliance.

In 2022, at least one of the factors “exceeding the speed limit” or “travelling too fast for the conditions” was reported in 12% of all collisions and 25% of all fatal collisions in England. Clear speed limit reminders are a practical way to support road safety for drivers, pedestrians, bus users, vulnerable road users and other road users.

What Makes It Different

Most roadside signs rely on drivers noticing an upright speed limit sign at the right point. A 60mph speed roundel works in the same way as a visual prompt but is positioned directly in the driver’s forward view.

Key features include:

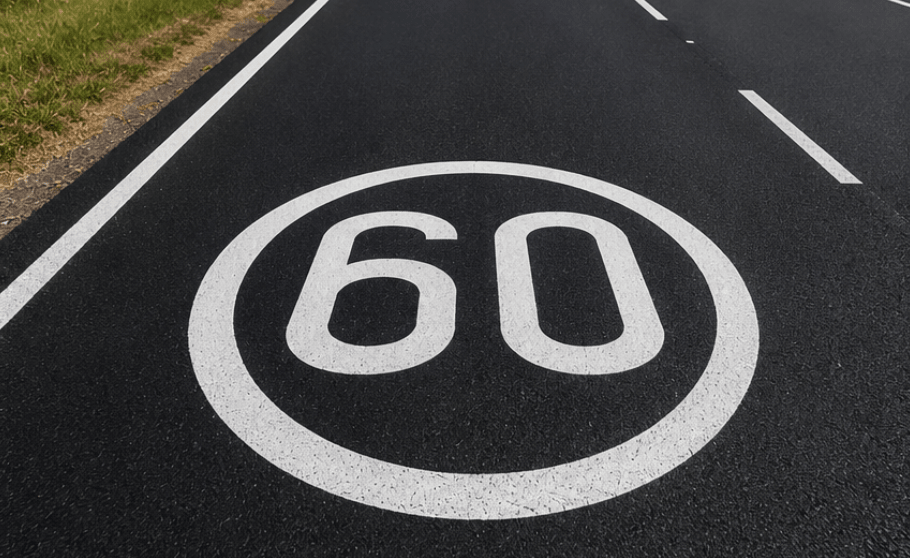

• Immediate carriageway visibility – Speed limit roundels are painted on the road surface inside a circle to indicate the current speed limit, often used at the start of a new speed limit or near speed limit reminder signs.

• Thermoplastic durability – Longer lasting than standard paint, with better resistance to weather, tyre wear and vehicle speeds.

• Reflective glass beads – Improves day and night visibility and helps most drivers identify the limit sooner.

• Regulation-aware use – While speed limit roundels can supplement a system of speed limit repeaters, they do not constitute a legal system of speed limit marking on their own.

Confusion can occur between the explicit “60” roundel and the grey circular National Speed Limit sign, as they apply differently to vehicles. The grey circular National Speed Limit sign indicates different speed limits depending on the type of vehicle.

How It Works

1. Prepare and position Clean the road surface, confirm the correct point in the road layout and position the roundel where the 60mph limit needs reinforcement.

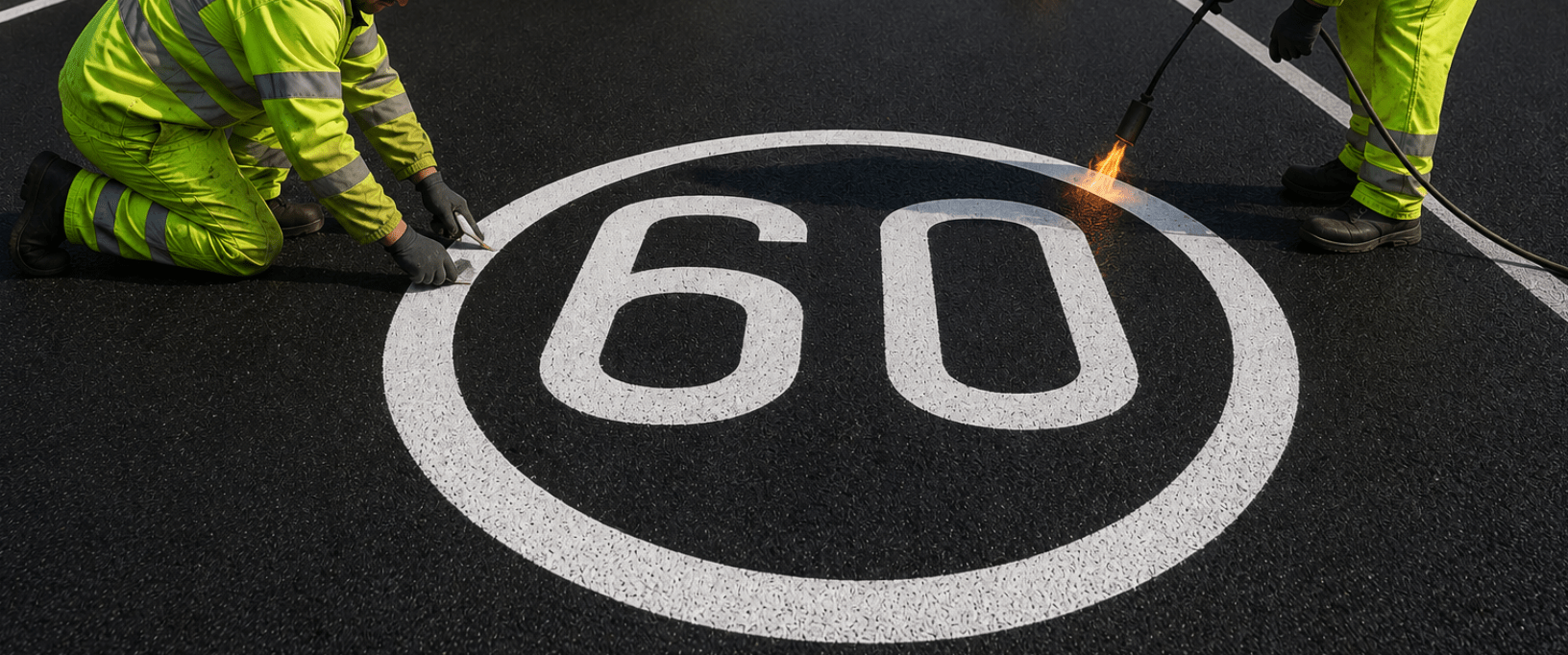

2. Heat apply the thermoplastic The preformed marking is heated into the carriageway using suitable professional equipment. Glass beads provide reflective performance, and surface preparation and thermoplastic primer helps adhesion.

3. Reinforce the speed limit Once installed, the marking provides an immediate visual speed cue for drivers, supporting lower speed limits, local speed limits, traffic calming measures or a different speed limit created by a speed limit order.

Speed transition zones are placed where a road moves from a lower to a higher speed limit to ensure safe acceleration.

Product Details

• Material / Format: Preformed thermoplastic road marking with reflective bead integration.

• Typical specification: Designed in line with TSRGD diagram 1065 guidance for speed roundel markings.

• 60mph sizing guidance: For speed limits of 51–60mph, Traffic Signs Manual guidance references 160mm character x-height and 1200mm roundel diameter.

• Application thickness: Hot thermoplastic screed markings are commonly laid around 3.5mm ±1.5mm.

• Compliance references: BS EN 1790, BS EN 1871 and BS EN 1436 performance principles for preformed road markings, reflectivity and skid resistance.

• Installation: Requires a clean, dry, suitable road surface, professional heat application and appropriate traffic management.

Mandatory speed limits displayed inside a red circular sign are legal requirements set under the Road Traffic Regulation Act. An upright terminal sign featuring a black “60” inside a red ring is a mandatory order setting a strict speed limit.

Complete Speed Limit Range Available

We offer consistent speed roundel options for different road types and traffic environments:

• 5mph – Car parks, private roads and shared spaces.

• 10mph – Restricted access areas and low-speed yards.

• 20mph – Residential areas, schools and traffic calming zones.

• 30mph – Urban areas where street lighting often indicates the standard limit.

• 40mph – Suburban roads, sharp bends and rural communities.

• 50mph – Dual carriageways or other roads where authorities set a lower limit.

• 60mph – Single carriageway roads where the national speed limit applies.

The national speed limit in the UK is 30 mph in urban areas, 60 mph on single carriageway roads, and 70 mph on dual carriageways and motorways. The standard speed limit in urban areas in England is 30mph, while 60mph is the national speed limit for single carriageway roads and 70mph for dual carriageways. In the absence of street lighting, the default speed limit is 60 mph for single-carriageway roads and 70 mph for dual carriageway roads, known as the National Speed Limit (NSL). All UK speed limits must be in multiples of 10 mph, so 35 mph or 45 mph limits are not permitted.

Who It’s For

Ideal for:

• Highway authorities and local councils

• Traffic authorities managing local needs and conditions

• Road maintenance contractors

• Traffic management companies

• Private road operators and car park managers

Traffic authorities are responsible for setting local speed limits based on local needs and conditions, which may suggest a speed limit lower than the national speed limit. Dual carriageways usually default to 70mph, but authorities can impose a 60mph limit in specific areas for safety.

Common Installation Locations

• rural roads

• industrial estates

• private access roads

• logistics depots

• highways

• transition zones

Frequently Asked Questions

Does a 60mph roundel replace upright road signs?
No. It supports traffic signs and repeater signs but does not replace the legal system of speed limit signing. Motorway signs, blue signs, warning signs and terminal signs still need to be used correctly.

Who can legally travel at 60mph?
The 60mph limit applies to standard cars, car-derived vans and motorcycles. Other vehicles may have lower limits. For goods vehicles over 7.5 tonnes and cars towing trailers, the maximum speed limit on single carriageways is 50mph. Vehicle rules can also depend on maximum laden weight.

Where is it used?
It is best suited to single carriageway roads, rural roads and carriageway roads where a clear 60mph reminder is needed. Most motorways and dual carriageways have different default limits, central reservation layouts, individual lanes, traffic moving in one direction and sometimes a hard shoulder.

Is there research on speed roundel effectiveness?
There is no specific research available on the effectiveness of speed limit roundels, but they are believed to be more visible than ordinary speed limit signs, potentially aiding driver awareness. Research also shows that the risk of a pedestrian dying in a collision with a car increases significantly at speeds above 30mph, with the risk rising rapidly as speed increases.

Ready to Upgrade Your Road Safety?

Choose a 60mph Speed Roundel Road Marking to improve driver awareness, reinforce UK speed limits and support safer traffic flow across your site or highway scheme.

Contact us to order your 60mph roundel or ask about the full 5mph, 10mph, 20mph, 30mph, 40mph, 50mph and 60mph speed limit range.
