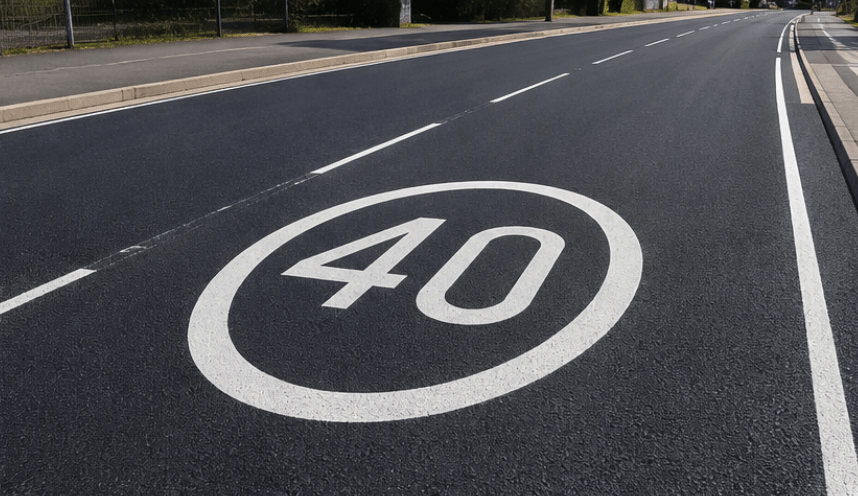

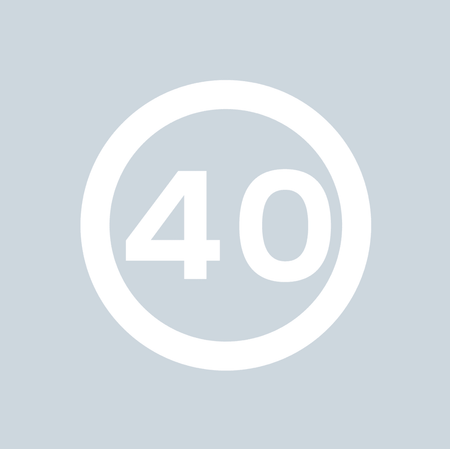

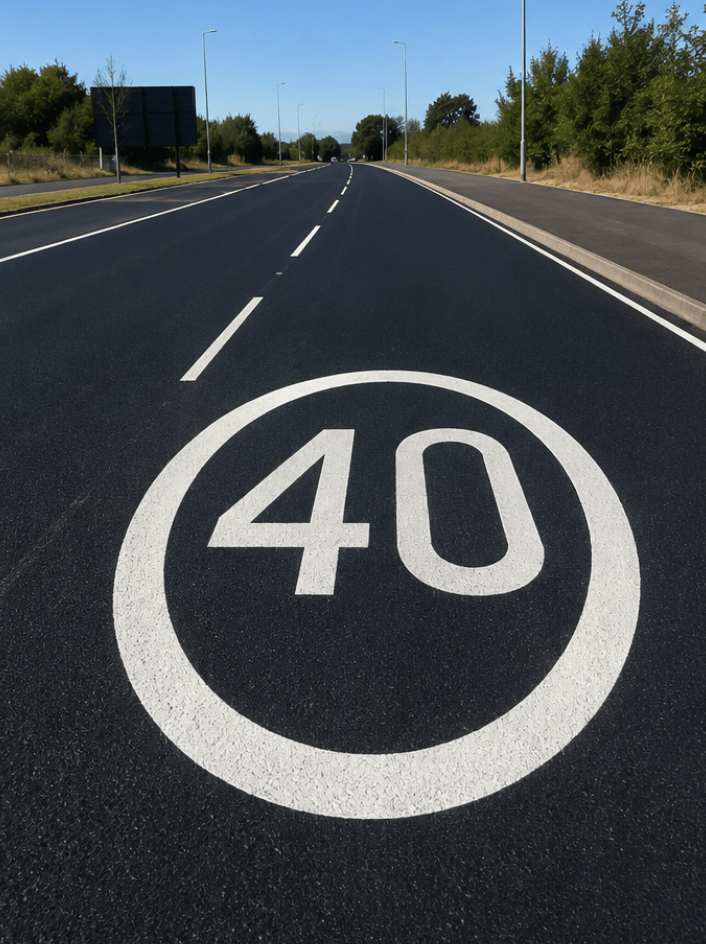

40mph Speed Roundel

A 40mph speed roundel is a regulatory road marking used to indicate the maximum permitted speed on a specific stretch of road, helping drivers recognise the 40mph speed limit at the exact point it starts.

Clear Speed Limit Enforcement at the Point Where 40mph Begins

Our 40mph speed roundel is designed for clear, compliant speed limit control at entrances, junctions, transition zones, roundabout approaches, and other roads where drivers need an immediate visual warning. Painted onto the carriageway in the traffic lane, the roundel places the speed message directly in the driver’s forward view.

Speed limits displayed within a roundel or a red-bordered upright sign are legally enforceable. Roundels must not be used to indicate advisory speeds; they are strictly for mandatory limits. Speed roundels on the road should typically be accompanied by upright speed limit signs to be valid, especially at the start of a new mph speed limit.

A 40mph speed roundel serves as a legally enforceable cap on vehicle speed and warns drivers of transition zones between built-up areas and open roads, supporting safer traffic management for vehicles, goods vehicles, buses, authorised vehicles, pedestrians, and highways users.

Why You’ll Love It

• Instant Recognition - Drivers immediately understand the 40mph speed limit begins, with the marking shown clearly on the road surface rather than relying only on road signs at the verge.

• Enhanced Safety - Helps reduce speed in advance of hazards, junctions, crossings, red routes, parking restrictions, loading areas, waiting controls, stop lines, signals, hatched markings, double white lines, and other carriageway features.

• Legal Compliance - Road markings are only legally valid if they comply with the standards set forth in the Traffic Signs Manual, specifically Chapter 5, which supports local authorities in meeting statutory duties under the Road Traffic Regulation Act 1984 and the Traffic Management Act 2004.

• Weather Resistant - Retroreflectivity in road markings is achieved through the use of glass beads, which can be embedded in the material or applied during installation to enhance visibility at night.

• Professional Installation - Easy application using thermoplastic and gas torch methods helps ensure the correct shape, line, edge, direction, and final placement point.

What Makes It Different

Standard upright signs can be missed because of sign clutter, lighting, parked vehicles, roadside vegetation, road layout, or driver focus. Roundels are painted on the road surface to be more visible to drivers than standard upright signs.

40mph Speed Roundel is built differently:

• Ground-Level Visibility - Positioned in the lane where drivers are already looking, helping provide advance notice and a minimum of two seconds’ preview time for safe reaction.

• Retroreflective Technology - Glass beads improve night visibility, low-light performance, and recognition distances.

• Thermoplastic Durability - Thermoplastic markings last longer than paint and are designed to withstand heavy traffic.

• Compliance Guaranteed - Size requirements for roundels vary based on the approach speed, and our markings are supplied to comply with UK road marking standards.

Note: visibility of road markings is crucial, with a minimum of two seconds’ preview time recommended for safe driver reaction, which translates to approximately 54 meters of visible line ahead at 60 mph.

How It Works

• Site Assessment - We assess the road, entrance, lane width, centre line, traffic lanes, approach speed, junctions, roundabout proximity, and whether upright signs or repeater sign placement is required.

• Surface Preparation - The carriageway is cleaned and prepared so the thermoplastic bonds correctly. Materials used for road markings must meet skid resistance requirements, with a Skid Resistance Value (SRV) of at least 45 for standard applications and 55 in high-risk locations.

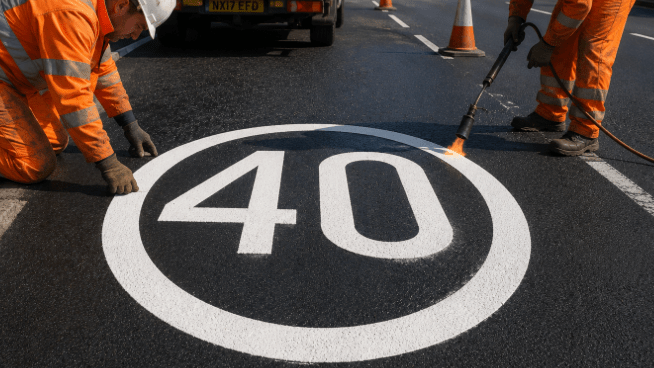

• Application Process - Preformed thermoplastic is positioned and heated with a gas torch for a clean, easy application in the same way other thermoplastic markings are installed.

• Quality Check - We check visibility, durability, line definition, retroreflectivity, dimensions, and compliance before the road marking returns to service.

Road markings should be placed at appropriate points to ensure drivers have enough time to react, with a minimum preview time of two seconds recommended, which equates to approximately 54 meters at 60 mph.

Product Details

• Material: Preformed thermoplastic with embedded glass beads

• Dimensions: Standard roundel diameter as per TSRGD specifications; size requirements for roundels vary based on the approach speed

• Retroreflectivity: Meets BS EN 1436 standards for visibility and night-time performance

• Available speeds: 5mph, 10mph, 20mph, 30mph, 40mph, 50mph, and 60mph options

• Durability: 5-8 years typical lifespan depending on traffic volume, road condition, weather, and heavy traffic wear

• Installation: Professional application using gas torch heating method

• Use: 40mph zones require regular repeater signs and road surface roundels to keep drivers aware of the limit

• Function: Road markings serve four core functional categories: regulatory, warning, guide, and information, which are essential for safe navigation, especially in low-light conditions

• Colours: UK road markings utilize three standard colors: white, yellow, and red, each serving specific purposes such as indicating traffic flow, restrictions, or warnings

Regulatory markings, such as double white lines and yellow boxes, must be renewed promptly if worn to ensure compliance with legal standards and maintain road safety.

Who It’s For

Ideal for:

• Local authorities implementing 40mph speed limits

• Highway contractors managing road marking projects

• Private road operators requiring speed control measures

• Traffic engineers designing speed transition zones

• Estates, depots, schools, business parks, and highways teams needing compliant speed limit markings

On 40mph roads, roundels may act as repeater signs to remind drivers of the limit. If you need visible, durable, legally compliant speed control at the start, end, or along the length of a 40mph route, this product fits your needs.

Frequently Asked Questions

How long does a 40mph speed roundel last?
Thermoplastic markings typically last 5-8 years, depending on traffic, heavy traffic volume, weather, surface preparation, and maintenance.

Is it legally compliant?
Yes, when installed with the required upright signs and in accordance with TSRGD and Traffic Signs Manual Chapter 5.

Can it be installed in all weather?
No. For best longevity, the road surface should be dry, clean, and suitable for thermoplastic application.

What other speeds are available?
We supply 5mph, 10mph, 20mph, 30mph, 40mph, 50mph, and 60mph speed roundels.

How visible is it at night?
Embedded glass beads provide retroreflective visibility at night, helping drivers identify the speed limit marking in low-light conditions.

Ready to Upgrade Your Speed Limit Enforcement?

Stop relying on upright signs alone. Choose a professional 40mph speed roundel to improve visibility, compliance, safety, and driver awareness at the point where the speed limit matters most.

Contact us for advice, ordering, and professional installation across the full 5mph to 60mph range.

Compliance-focused supply. Professional service. Durable thermoplastic road markings.
